Highlights:
- Speed up the flow of slow-moving and uncooperative contents such as oil, honey, molasses, etc.
- Designed for caged, plastic or metal tote tanks/ Intermediate Bulk Containers (IBCs)
- Non-evasive- won't contaminate or scorch your product!
- Two separate heat zones allows you to adjust heater output when content levels lower.
Important Features
Specifications

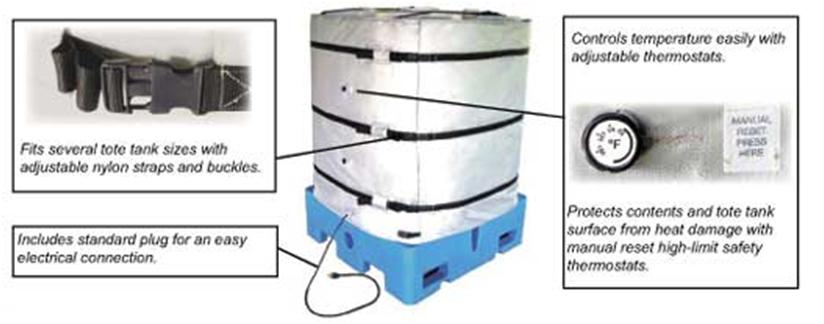

- Full Coverage Plug and Play system
- Fits any tote tank width from 40" x 40" (1016mm x 1016mm) to 48" x 48" (1219mm x 1219mm)
- Three standard height sizes: 36" (914mm), 42" (1067mm), 48"" (1220mm)
- Two separate heat zones (top and bottom)
- Adjustable thermostat from 50 to 160ºF (10 to 71ºC)
- Built-in manual reset high-limit safety thermostat set at 195ºF (91ºC) for each heat zone
- Adjustable nylon straps for a custom fit (two across the top and three around the tank)
- Silicone infused cloth facing and liner
- 1/4" (6mm) fiberglass insulation
- "Mouse hole" designed for spigot
- Patented ground for your safety meets NEC 427.23
- High wattage:
- 120VAC= 1440watts
- 240VAC= 2880watts
- Power cord 6 ft (1.8m) long with standard 3-prong power plug
- 120VAC= NEMA 5-15
- 240VAC= NEMA6-15
- Optional top cover (Reduces heat loss, increases heat-up time)
 Tote Tank/ IBC Heating to Avoid Freezing and Increase Flow
Tote Tank/ IBC Heater Specifications
Options:
